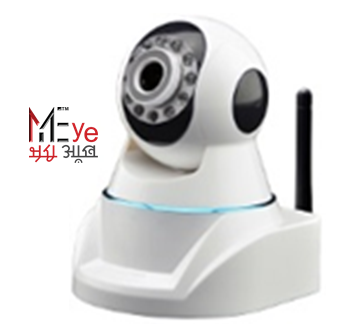

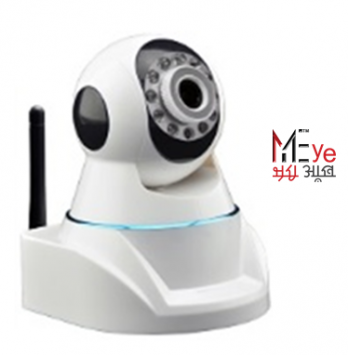

My Eye 370 PTZ Camera Wifi/3G/4G

TECHNICAl SPECIFICATION
MODEL	INDOOR CAMERA	MyEye 370 (Indoor PTZ) – Lan/Wifi / 3g / 4g
System	CPU	TI DSP   DM365
	FLASH	128MB
	DDR2	128MB
	OS	Linux2.6
Image  Sensor	Image Sensor	1/4″ Color CMOS Sensor
	Display Resolution	1280×720 Pixels
Lens	Lens	f=3.6mm, F=2.6
	Mini. Illumination	2Lux ; 0Lux(Infrared light)
	Lens Type	Glass Lens (Day and night)
	Viewing Angle	60 or 90 Degree Selectable
Audio	Input	Built-in Microphone
	Output	1 channel audio line output
	Audio Compression/ Stream	AAC (G711 Optional) ,Two Ways
Video	Video Compression	H.264, MPEG4, MJPEG
	Video Frame Rate	30fps(720P), 30fps(D1)
	Video bit Rate	64k~12Mbps
	Resolution	1280×720(720P), 800×600, 720×480(D1), 640 x 480(VGA), 320 x 240(QVGA) , 512×384(DCIF), 352 x 288(CIF)                                 (Can be defined by customer)
	Flip Mirror Images	Vertical / Horizontal
	Light Frequency	50Hz, 60Hz or Outdoor
	Video Parameters	Brightness, Contrast
Storage	TF Card	1GB~32GB
Network	Ethernet Interface	Build in 10/100Mbps,Auto MDI/MDIX , RJ-45
	Supported Protocol	HTTP,FTP,TCP/IP, UDP, SMTP, DHCP, DDNS, UPnP, RTSP, SIP
	Wireless Standard	IEEE 802.11b/g/n
	Data Rate	802.11b: 11Mbps (Max.), 802.11g: 54Mbps (Max.), 802.11n: 150Mbps (Max.)
	Wireless Security	WEP & WPA WPA2 Encryption
Pan/Tilt &I/O	Pan/Tilt Angle	PTZ
	Infrared Light	12 IR LEDs
	Night Vision Range	8meters
	IR-Cut	Yes
	Alarm Input	1 alarm input
	Alarm Output	2 alarm output
	Motion Detect	Motion detect
	PIR Detect distance	Not
	Alarm	Siren ,push message to mobile APP and send  mail alert upon data motion detect or PIR detect.
	Siren db	Not
	Reset	1 Reset button
View methods	iPhone\iPad	51See Application from Apple store
	Android	51See Appication from google play for android 2.1 and higher version
	PC Client	Setting IP address and multi-picture view
	Other system connection	TCP, RTSP, SIP
	Browser	IE6.0/7.0/8.0 or other standard browsers
	Online Vistors	No Limited
PC System Requirements	CPU	2.0GHZ or above (suggested 2.0GHz dual core)
	Memory Size	512MB or above (suggested 2.0GMB)
	Display Card	64M or above
	Supported OS	Microsoft Windows 2000/XP/Vista/7
Power	Power Supply	DC 5V/3.0A (EU,US,AU adapter or other types optional)
	Power Consumption	3 Watts (Max.)
Environment	Operate Temper.	0° ~ 40°C  (32°F ~ 113°F)
	Operating  Humidity	20% ~ 80% non-condensing
	Storage Temper.	(-) 20~60°C (-4°F ~ 140°F)
	Storage Humidity	15% ~ 85% non-condensing
Certification	CE, FCC
Warranty	Limited 1-year warranty
